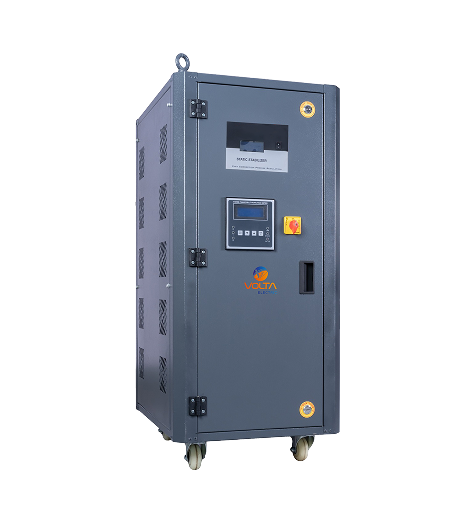

Three Phase – 60KVA TO 200 KVA
Key Features
Advanced Digital Signal Processor (DSP) Control
Precise Voltage Regulation within ±1%
Fully Contactless Power Path for Enhanced Reliability
Instant Voltage Correction in Less Than 20 ms
High Crest Factor Support (1:10 Ratio)
High Efficiency with Soft Start Functionality
Low Impedance Design for Optimal Performance
Efficient Natural Air Cooling System
Standard Features
Power Factor and Phase Angle Analysis
KVA & KW Measurement with ELCB-Based Cutoff
Triple Window Protection for Overload and Voltage (Low/High) Trips
Frequency Monitoring with High/Low Cutoff Function
Phase Reversal Detection and Protection
Neutral Missing Detection with Auto Trip
Contactor Failure Detection and Tripping
200 Event Trip log entry
Detailed Trip Logs with Timestamp
Single-Phase Fault Prevention Mechanism
|
SPECIFICATION OF VSPM SERIES 3 PH IN - 3 PH OUT - 60KVA TO 200 KVA
|
||||||||
|---|---|---|---|---|---|---|---|---|
|
Model
|
VGES60000
|
VGES75000
|
VGES100000
|
VGES125000
|
VGES150000
|
VGES175000
|
VGES200000
|
|
|
Topology
|
IGBT based
|
|||||||
|
Input Power
|
3 Phase Input – 3 Phase Output
|
|||||||
|
Capacity
|
60KVA
|
75KVA
|
100KVA
|
125KVA
|
150KVA
|
175KVA
|
200KVA
|
|
|
INPUT
|
||||||||
|
Input Voltage Window
|
±135- 360V - 470V, ±15% - 360V-480V,±20% - 330V - 500V
|
|||||||
|
Max Rated I/P Curerntf99A
|
94A/99A/107A
|
116A/123A/133A
|
157A/165A/180A
|
196A/207A
|
235A/248A
|
273A
|
312A
|
|
|
Normal Frequency
|
47-55Hz
|
|||||||
|
AC Connection
|
Terminal Block L1,L2,L3,N-G Five Wire
|
|||||||
|
OUTPUT
|
||||||||
|
Output Voltage
|
400V AC, 415 V AC
|
|||||||
|
Voltage Regulation
|
±1 V
|
|||||||
|
Power Effciency
|
97%
|
|||||||
|
Max Rated O/P Current
|
84 A
|
104A
|
140A
|
175A
|
210A
|
245A
|
280A
|
|
|
ENVIROMENT
|
||||||||
|
Ambient Temperature
|
0°C to -45°C, 10 to 90% RH non-condensing
|
|||||||
|
Cooling
|
Forced Air Cool
|
|||||||
|
DISPLAY
|
||||||||
|
LCD Display
|
4 Line LCD display Showing input, output Voltage, Load % Fault annuciation
|
|||||||
|
PROTECTION
|
||||||||
|
Standard & Safety
|
Class IP-20
|
|||||||
|
OV/UV
|
Electronic Cutoff Over/Under Voltage & Phase Missing
|
|||||||
|
Overload & Short-Circuit
|
CT-based electronic cutoff with time-delay setting, triggered at 110% of rated full load current, integrated with an input circuit breaker.
|
|||||||
|
Soft Start
|
At switch-on, the device ensures the output voltage does not surpass the input voltage until stable conditions are reached.
|
|||||||
|
Manual Bypass
|
Optional
|
|||||||
|
Surge Test Condition
|
As per Class 2 Surge (Combination Weaves)
|
|||||||
|
Reset Mode
|
Manual & Auto reset provided
|
|||||||
|
Mounting
|
Wheel Mounted with Brakes
|
|||||||
|
Enclosure
|
MS Powder Coated
|
|||||||
