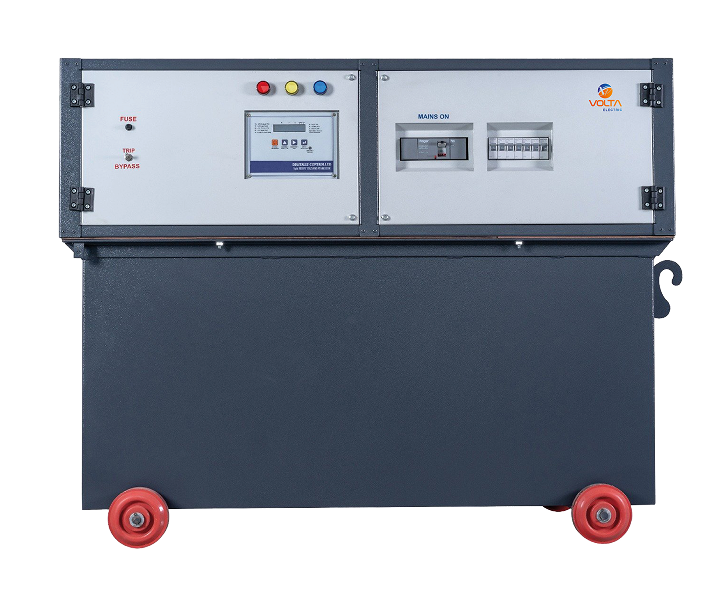

Three Phase Servo Stabilizer 50KVA– 2000KVA
Protection
High Voltage Cutoff.
Low Voltage Cutoff.
Single Phasing preventer.
Overload Cutoff
Short-circuit Protection.
High Voltage /Low Voltage/Overload
Immediate Trip (IM).
0
ms
Response Time
0
V
Output Voltage
0
+%
Efficiency
0
V/Sec
Rate of Correction
Standard Features
Each Phase Controlled by separate motorised -transformers to ensure desired voltage.
Digital Display of all parameters like Voltage, Current.
Auto/Manual facility.
Transient Voltage Surge Suppression.
DG Set Compitiable.
Optional Features
Manual By-pass Switch.
Contactor at Output- in Oil Cooled.
Earth Leakage Cutoff, Lighting Surge, Extermely high spikes protection by SPD.
|
TECHNICAL SPECIFICATIONS
|
|||
|---|---|---|---|
|
Input Voltage Range
|
360V-480V, 340V-480V, 300V-500V
|
||
|
Output Voltage
|
400 V, 415 V (Or as Per Customer Demands).
|
||
|
Operating Frequency
|
47-53 Hz.
|
||
|
Output Regulation
|
±1%
|
||
|
Rate Of Correction
|
35 V/ Sec.
|
||
|
Wavefrom Distortion
|
Nil.
|
||
|
Power Efficency
|
≥98% ( 20% -100% Load Condtion )
|
||
|
Response Time
|
10 milisec.
|
||
|
Cooling
|
Oil Cool
|
||
|
Degree Of Protection
|
IP:30
|
||
|
Applicable Standard
|
IS 9815
|
||
|
Enclosure
|
MS Powder Cotted With Wheels For Movements.
|
||
