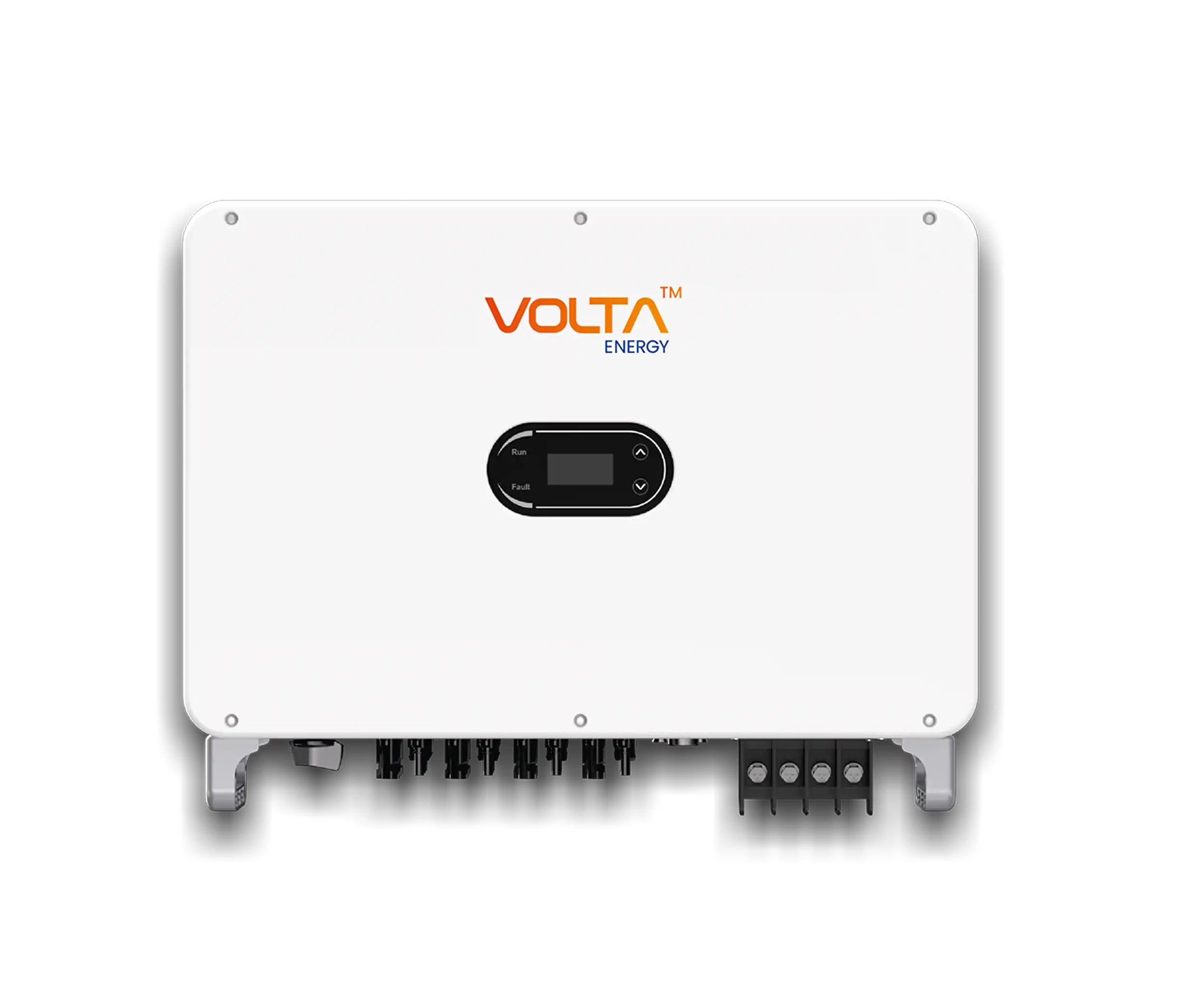

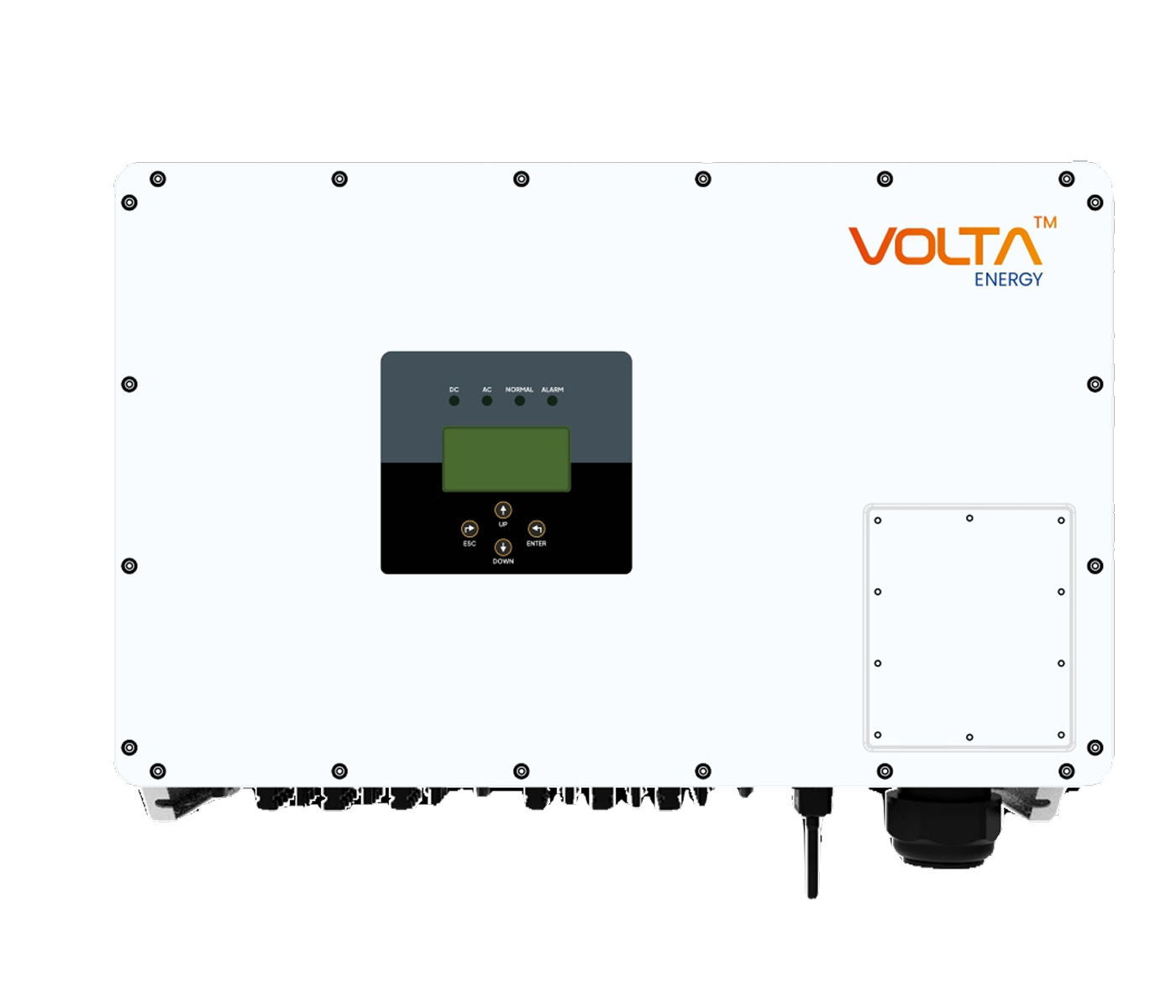

Three Phase On-Grid Inverter 40-80 KW
Protection
DC Isolator Switch (included).
Insulation Resistance Protection.
DC Reverse Polarity Protection.
Anti-Islanding Protection.
Ground Fault Protection.
Output Short Circuit Protection.
Surge Protection (DC: Type II / AC: Type II).
Standard Features
2/3/4 MPP tracker.
LED + LCD Display.
IP65 Outdoor protection.
Intelligent fan cooling.
Operating humidity: 0–100%.
Remote monitoring enabled.
Optional Features
VSG application.
Anti-PID function.
String intelligent monitoring.
|

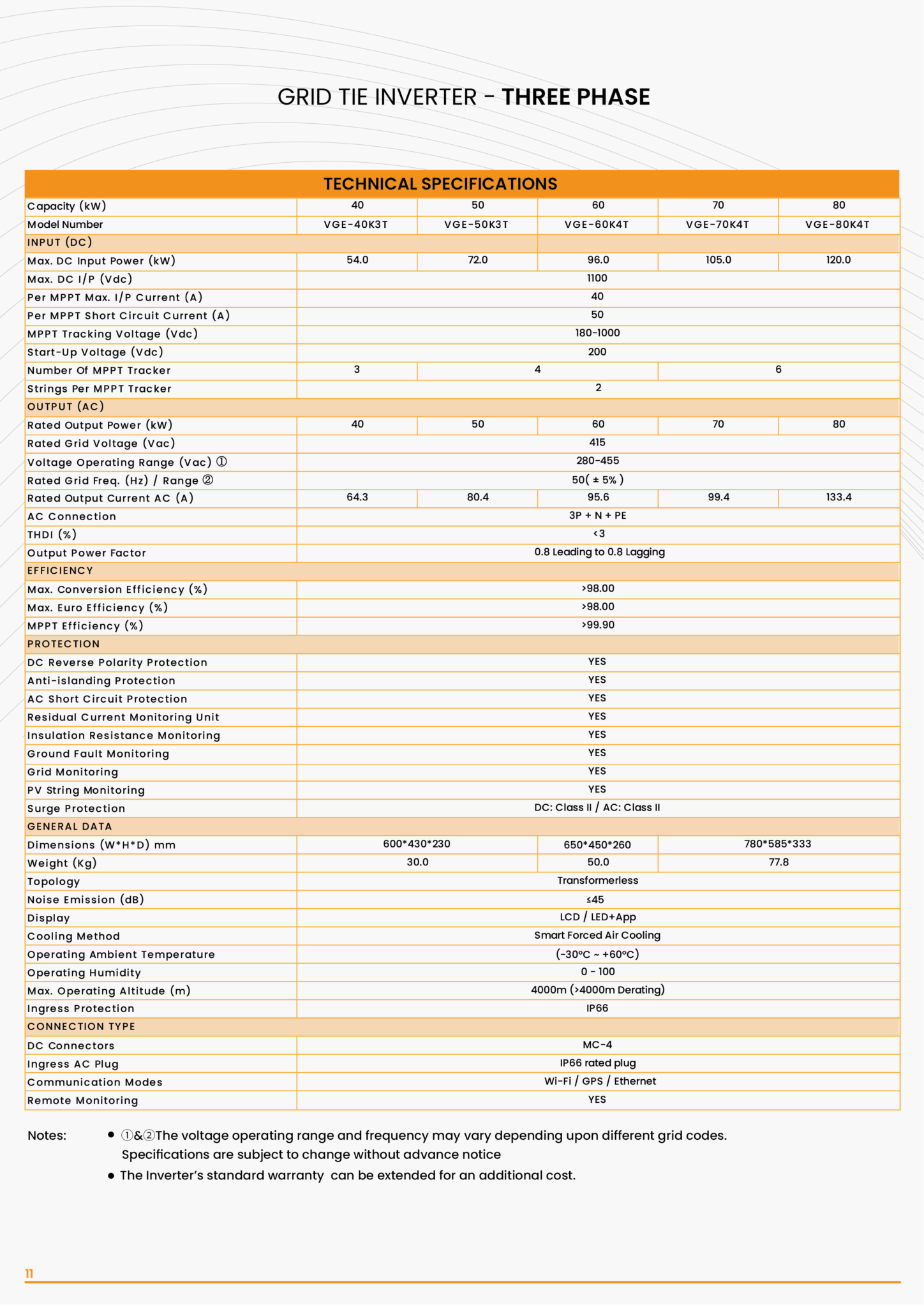

TECHNICAL SPECIFICATIONS
|
|||||
|---|---|---|---|---|---|
|
CAPACITY (KW)
|
40
|
50
|
60
|
70
|
80
|
|
MODEL NUMBER
|
VGE-40K3T
|
VGE-50K3T
|
VGE-60K3T
|
VGE-70K3T
|
VGE-80K3T
|
|
INPUT (DC)
|
|
||||
|
Max.DC input power (KW)
|
48.0
|
60.0
|
72.0
|
84.0
|
96.0
|
|
Max. DC I/P (Vdc)
|
1000V
|
||||
|
Max. MPPT I/P Current (A)
|
40A
|
||||
|
MPPT Short Circuit Current (A)
|
60A
|
||||
|
MPPT Tracking Voltage (Vdc)
|
200-1000V
|
||||
|
Start-Up Voltage (V)
|
200V
|
||||
|
Number of MPPT Tracker
|
3/4
|
4
|
|||
|
Strings per MPPT Tracker
|
3
|
3/4
|
|||
|
OUTPUT (AC)
|
|
||||
|
Rated output power (KW)
|
40
|
50
|
60
|
70
|
80
|
|
Rated Grid Voltage (V)
|
415V
|
||||
|
Voltage Operating Range (V)
|
280-455V
|
||||
|
Rated Grid freq. (Hz) / Range
|
50Hz ( ± 5% )
|
||||
|
Rated output current AC (A)
|
55.7
|
63.2
|
84.3
|
99.4
|
133.2
|
|
AC Connection
|
3P+N+PE
|
||||
|
THDI (%)
|
<3%
|
||||
|
Output Power factor
|
0.9 leading to 0.9 lagging
|
||||
|
EFFICIENCY
|
|
||||
|
Max. conversion Efficiency (%)
|
98.7%
|
||||
|
Max. Euro Efficiency (%)
|
98.1%
|
||||
|
MPPT Efficiency (%)
|
>99%
|
||||
|
PROTECTION
|
|
||||
|
Anti-Islanding Protection
|
YES
|
||||
|
DC Reverse Polarity Protection
|
YES
|
||||
|
Insulation Resistance Protection
|
YES
|
||||
|
Ground Fault Protection
|
YES
|
||||
|
Output Over Current Protection
|
YES
|
||||
|
Output Short circuit Protection
|
YES
|
||||
|
Output Over Voltage Protection
|
YES
|
||||
|
DC Isolator Switch
|
YES
|
||||
|
Surge Protection
|
DC: Type II / AC: Type II
|
||||
|
GENERAL DATA
|
|
||||
|
Dimensions (W*H*D) mm
|
434W*570H*243D
|
700W*575H*297D
|
|||
|
Weight (Kg)
|
39.0
|
60.0
|
|||
|
Topology
|
Transformerless
|
||||
|
Noise Emission (dB)
|
≤45dB
|
||||
|
Display
|
LED with LCD Display
|
||||
|
Cooling Method
|
Intelligent Fan Cooling
|
||||
|
Operating ambient Temperature
|
(-25°C ~ +65°C)
|
||||
|
Operating Humidity
|
0% - 100%
|
||||
|
Max. Operating Altitude (m)
|
2000m (>2000m Derating)
|
||||
|
Ingress Protection
|
IP65
|
||||
|
Standard Warranty
|
8 Years
|
||||
|
CONNECTION TYPE
|
|
||||
|
DC connectors
|
MC-4
|
||||
|
Ingress AC plug
|
IP65 rated plug
|
||||
|
Communication Modes
|
WiFi / GPRS / RS 485/ Local Monitoring
|
||||
|
Remote Monitoring
|
YES
|
||||
