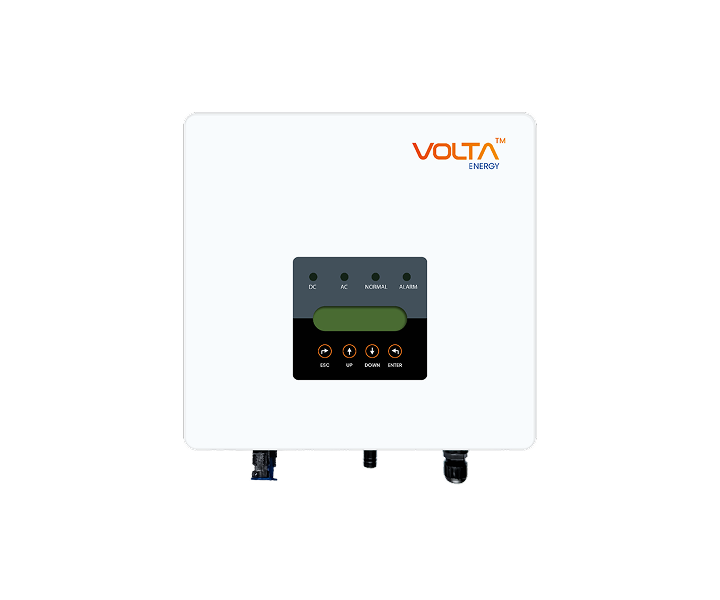

Single Phase On-Grid Inverter 2–6 KW
Protection
Anti-Islanding Protection.
DC Reverse Polarity Protection.
Insulation Resistance Protection.
Ground Fault Protection.
Output Over Current Protection.
Output Short Circuit Protection.
Surge Protection (DC: Type II / AC: Type II).
Standard Features
1/2 MPP tracker.
Maximum efficiency up to 97.5%.
Wide input voltage range (80V–600V).
Low start-up voltage (80V).
LED + LCD Display
Transformerless design.
Optional Features
Anti-PID function.
Zero export application.
VSG application.
|

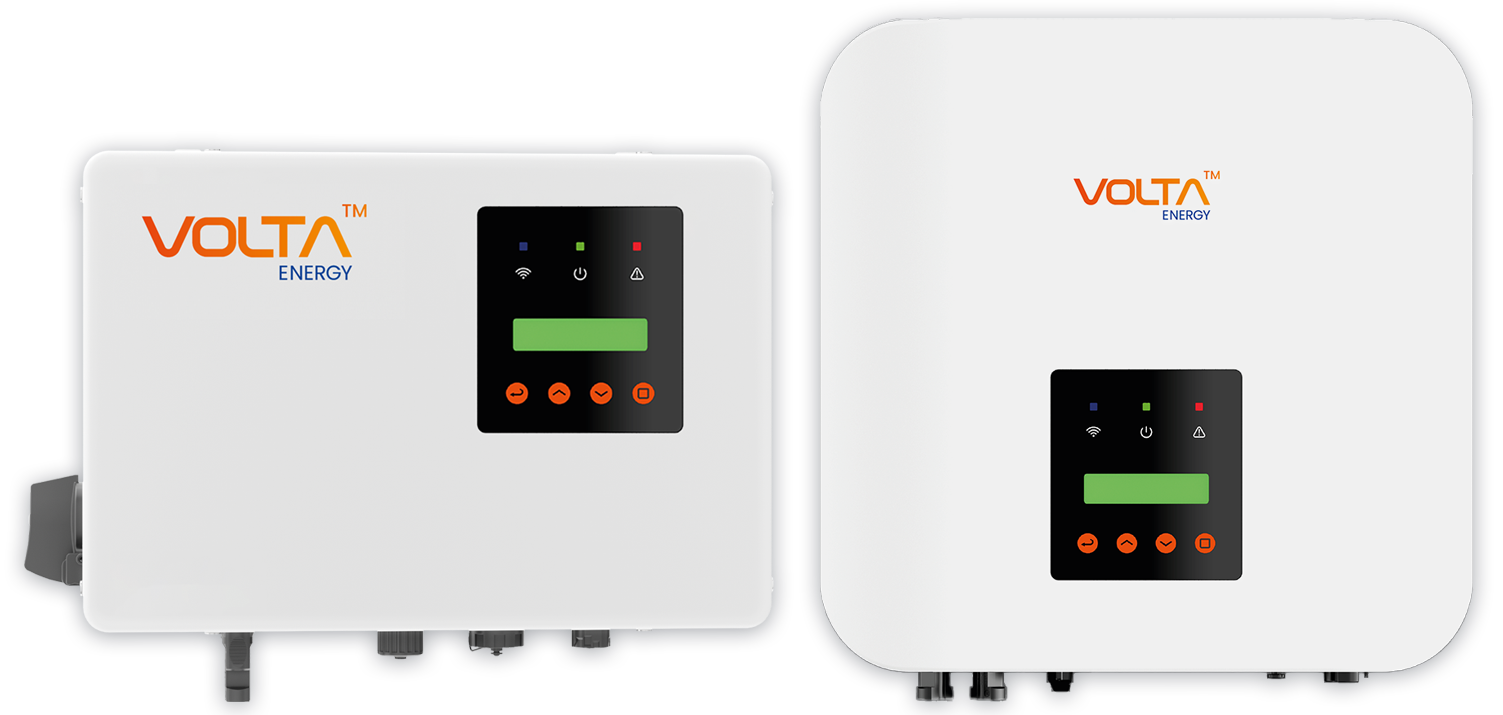

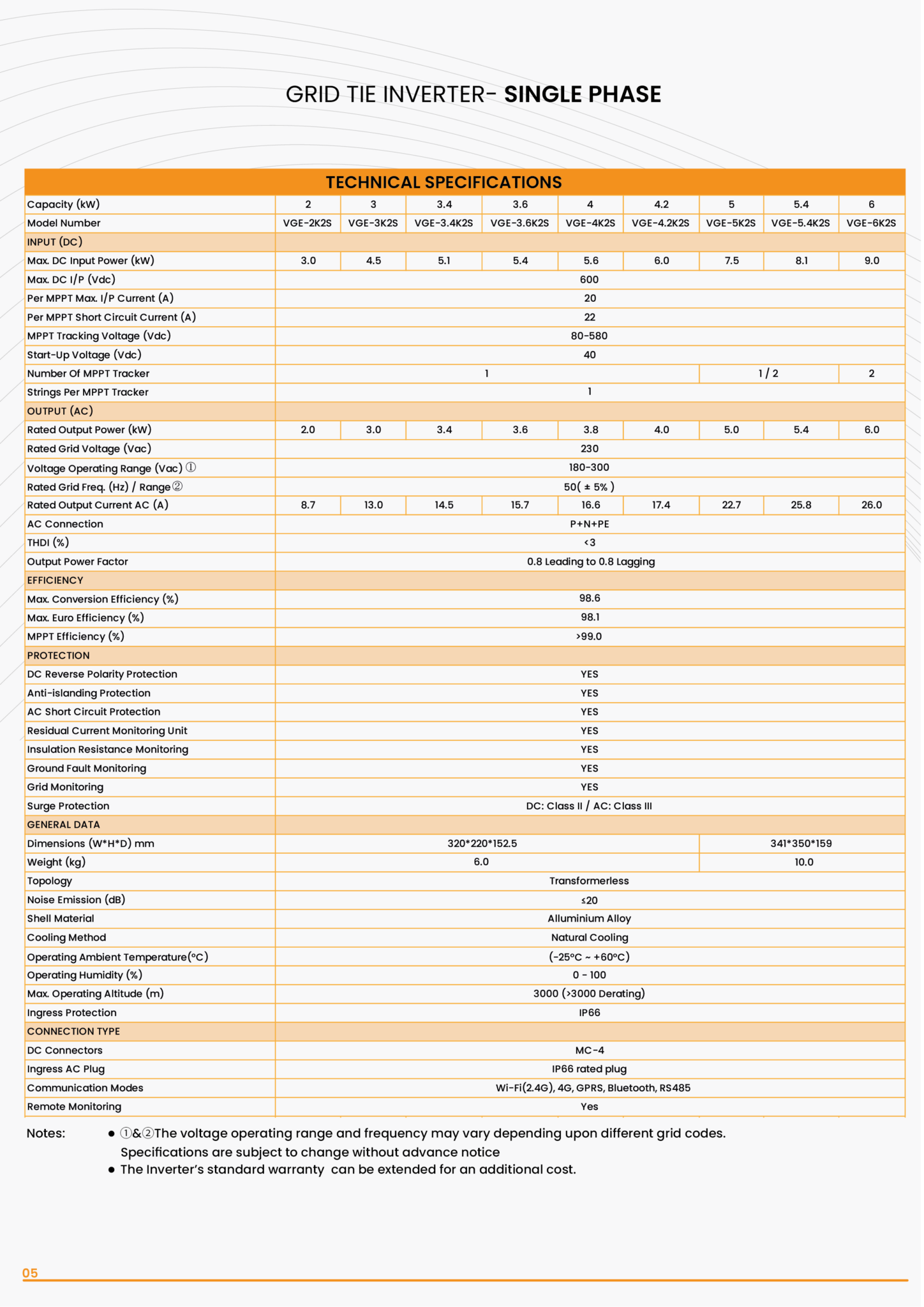

TECHNICAL SPECIFICATIONS
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|
|
CAPACITY (KW)
|
2
|
3
|
3.4
|
3.6
|
4.0
|
4.2
|
5
|
5.4
|
6
|
|
MODEL NUMBER
|
VGE-2K2S
|
VGE-3K2S
|
VGE-3.4K2S
|
VGE-3.6K2S
|
VGE-4K2S
|
VGE-4.2K2S
|
VGE-5K2S
|
VGE-5.4K2S
|
VGE-6K2S
|
|
INPUT (DC)
|
|
||||||||
|
Max.DC input power (KW)
|
2.2
|
3.3
|
3.7
|
3.9
|
4.4
|
4.6
|
5.5
|
5.9
|
6.6
|
|
Max. DC I/P (Vdc)
|
550V
|
600V
|
|||||||
|
Max. MPPT I/P Current (A)
|
20A
|
||||||||
|
MPPT Short Circuit Current (A)
|
30A
|
||||||||
|
MPPT Tracking Voltage (Vdc)
|
70-550V
|
80-550V
|
80-600V
|
||||||
|
Start-Up Voltage (V)
|
80V
|
||||||||
|
Number of MPPT Tracker
|
1 & 2
|
||||||||
|
Strings per MPPT Tracker
|
1
|
||||||||
|
OUTPUT (AC)
|
|
||||||||
|
Rated output power (KW)
|
2
|
3
|
3.4
|
3.6
|
4.0
|
4.2
|
5
|
5.4
|
6
|
|
Rated Grid Voltage (V)
|
230V
|
||||||||
|
Voltage Operating Range (V)
|
195.5-253V
|
||||||||
|
Rated Grid freq. (Hz) / Range
|
50Hz ( ± 5% )
|
||||||||
|
Rated output current AC (A)
|
9.6
|
14.3
|
16.2
|
17.2
|
19
|
20
|
23.5
|
25.8
|
28.7
|
|
AC Connection
|
P+N+PE
|
||||||||
|
THDI (%)
|
<3%
|
||||||||
|
Output Power factor
|
0.8 leading to 0.8 lagging
|
||||||||
|
EFFICIENCY
|
|
||||||||
|
Max. conversion Efficiency (%)
|
97.5%
|
||||||||
|
Max. Euro Efficiency (%)
|
97.3%
|
||||||||
|
MPPT Efficiency (%)
|
>99%
|
||||||||
|
PROTECTION
|
|
||||||||
|
Anti-Islanding Protection
|
YES
|
||||||||
|
DC Reverse Polarity Protection
|
YES
|
||||||||
|
Insulation Resistance Protection
|
YES
|
||||||||
|
Ground Fault Protection
|
YES
|
||||||||
|
Output Over Current Protection
|
YES
|
||||||||
|
Output Short circuit Protection
|
YES
|
||||||||
|
Output Over Voltage Protection
|
YES
|
||||||||
|
DC Isolator Switch
|
NO
|
||||||||
|
Surge Protection
|
DC: Type II / AC: Type II
|
||||||||
|
GENERAL DATA
|
|
||||||||
|
Dimensions (W*H*D) mm
|
254W*147H*236.2D
|
305W*280H*180D
|
|||||||
|
Weight (Kg)
|
6.35
|
7.8
|
|||||||
|
Topology
|
Transformerless
|
||||||||
|
Noise Emission (dB)
|
≤25dB
|
||||||||
|
Display
|
LED with LCD Display
|
||||||||
|
Cooling Method
|
Natural Cooling
|
||||||||
|
Operating ambient Temperature
|
(-25°C ~ +65°C)
|
||||||||
|
Operating Humidity
|
0% - 100%
|
||||||||
|
Max. Operating Altitude (m)
|
2000m (>2000m Derating)
|
||||||||
|
Ingress Protection
|
IP65
|
||||||||
|
Standard Warranty
|
8 Years
|
||||||||
|
CONNECTION TYPE
|
|
||||||||
|
DC connectors
|
MC-4
|
||||||||
|
Ingress AC plug
|
IP65 rated plug
|
||||||||
|
Communication Modes
|
WiFi / GPRS / RS 485/ Local Monitoring
|
||||||||
|
Remote Monitoring
|
YES
|
||||||||
|
Remote Monitoring
|
YES
|
||||||||
